Order code TIP Length (mm) Cutting force (kg) Copper wire (Ø mm) Copper wire (awg)
TR 20 50 M 131mm 2 Ø 0.64mm 22 awg
TR 20 50 M D 131mm 2 Ø 0.64mm 22 awg
TR 20 TM 129mm 2 Ø 0.64mm 22 awg
TR 20 TM D 129mm 2 Ø 0.64mm 22 awg
TR 20 VM 132mm 2 Ø 0.64mm 22 awg
TR 20 VM D 132mm 2 Ø 0.64mm 22 awg
TR 25 50 130mm 5 Ø 1.30mm 16 awg
TR 25 50 D 130mm 5 Ø 1.30mm 16 awg
TR 25 50 X D (inox) 130mm 5 Ø 1.30mm 16 awg
TR 25 50 X (inox) 130mm 5 Ø 1.30mm 16 awg
TR 30 T 132mm 2.5 Ø 1.02mm 18 awg
TR 30 T D 132mm 2.5 Ø 1.02mm 18 awg
TR 30 V 139mm 3 Ø 1.02mm 18 awg
TR 30 V D 139mm 3 Ø 1.02mm 18 awg
TR 5000 V 142mm 3.5 Ø 1.30mm 16 awg
TR 5000 V D 142mm 3.5 Ø 1.30mm 16 awg
Contact us for more info
Order code TIP Head Cutting force (kg) Copper wire (Ø mm) Copper wire (awg)
TR 20 50 MDatasheetTR 20 50 M Micro 2 Ø 0.64mm 22 awg

Flush cutter with particularly thin head and cutting edges angled at 50°, ideal for hard-to-reach areas. Steel thickness 2mm.

TR 20 50 M DDatasheetTR 20 50 M D Micro 2 Ø 0.64mm 22 awg

ESD Flush cutter with particularly thin head and cutting edges angled at 50°, ideal for hard-to-reach areas. Steel thickness 2mm.

TR 20 TMDatasheetTR 20 TM Micro 2 Ø 0.64mm 22 awg

IC pin cutter. With small cutting edges, angled at 50°, suitable for cutting pins that are very close to each other. Steel thickness 2mm.

TR 20 TM DDatasheetTR 20 TM D Micro 2 Ø 0.64mm 22 awg

ESD IC pin cutter. With small cutting edges, angled at 50°, suitable for cutting pins that are very close to each other. Steel thickness 2mm.

TR 20 VMDatasheetTR 20 VM Micro 2 Ø 0.64mm 22 awg

Flush end cutter. With small cutting edges, angled at 60°, ideal for hard-to-reach areas. Steel thickness 2mm.

TR 20 VM DDatasheetTR 20 VM D Micro 2 Ø 0.64mm 22 awg

ESD Flush end cutter. With small cutting edges, angled at 60°, ideal for hard-to-reach areas. Steel thickness 2mm.

TR 25 50DatasheetTR 25 50 Medium 5 Ø 1.30mm 16 awg

50° angled flush cutter for specific electronics applications. Steel thickness 2.5mm.

TR 25 50 DDatasheetTR 25 50 D Medium 5 Ø 1.30mm 16 awg

ESD 50° angled flush cutter for specific electronics applications. Steel thickness 2.5mm.

TR 25 50 X D (inox)DatasheetTR 25 50 X D (inox) Medium 5 Ø 1.30mm 16 awg

ESD 50° angled flush cutter for specific electronics applications.
Made by stainless steel offers an high resistance to corrosion, is wet resistant and has an high durability. Thanks to its smooth surface, stainless steel, tends to retain polluting impurities in smaller amounts than others so that it is suitable to be used for applications in clean-room, electronics applied to medical industry and fish industry as well.
Inox steel thickness 2.5 mm.

TR 25 50 X (inox)DatasheetTR 25 50 X (inox) Medium 5 Ø 1.30mm 16 awg

50° angled flush cutter for specific electronics applications.
Made by stainless steel offers an high resistance to corrosion, is wet resistant and has an high durability. Thanks to its smooth surface, stainless steel, tends to retain polluting impurities in smaller amounts than others so that it is suitable to be used for applications in clean-room, electronics applied to medical industry and fish industry as well.
Inox steel thickness 2.5mm.

TR 30 TDatasheetTR 30 T Medium 2.5 Ø 1.02mm 18 awg

Ergonomic high-precision 50° angled IC pin cutter. Steel thickness 3 mm.

TR 30 T DDatasheetTR 30 T D Medium 2.5 Ø 1.02mm 18 awg

ESD Ergonomic high-precision 50° angled IC pin cutter. Steel thickness 3 mm.

TR 30 VDatasheetTR 30 V Medium 3 Ø 1.02mm 18 awg

Flush end cutter for clean cuts. The special 60° angle makes the tool ideal for hard-to-reach areas. Steel thickness 3mm.

TR 30 V DDatasheetTR 30 V D Medium 3 Ø 1.02mm 18 awg

ESD Flush end cutter for clean cuts. The special 60° angle makes the tool ideal for hard-to-reach areas. Steel thickness 3mm.

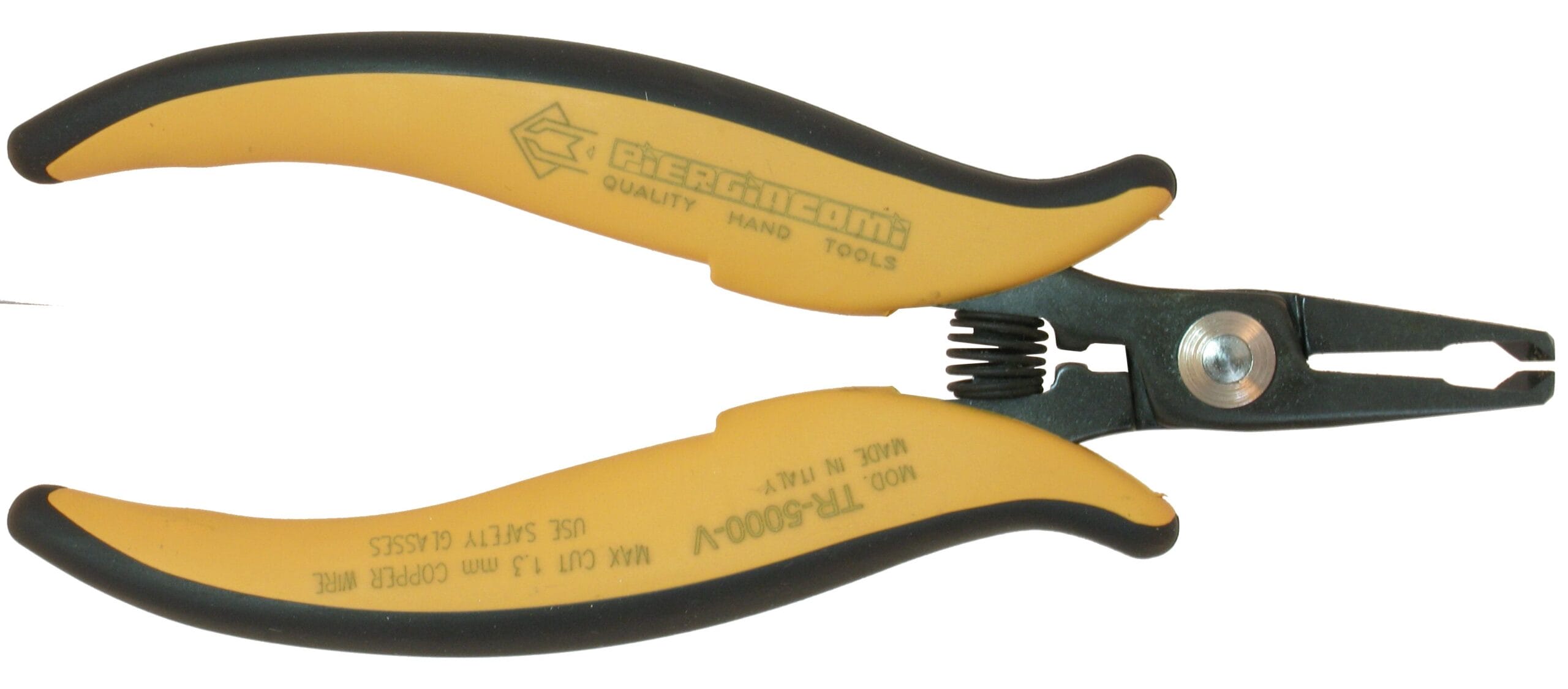

TR 5000 VDatasheetTR 5000 V Medium 3.5 Ø 1.30mm 16 awg

Special 60° angled flush end cutter. Ideal for hard-to-reach areas. Similar to TR 30 V, but with 5mm steel thickness.

TR 5000 V DDatasheetTR 5000 V D Medium 3.5 Ø 1.30mm 16 awg

ESD Special 60° angled flush end cutter. Ideal for hard-to-reach areas. Similar to TR 30 V D, but with 5mm steel thickness.
