Order code TIP Cutting force (kg) Copper wire (Ø mm) Copper wire (awg) Length (mm) Notes
P-TPP Body for lever action for TPP.
TP 30 D 3 Max cut Ø 0.6mm 22 awg 135mm Cut and bend pliers. ESD-safe handles.
TP 5000/15 D 3 Max cut Ø 0.8mm 20 awg 147mm Cuts and bends the component fixing it on the circuit board. ESD-safe handles.
TPP SET with case Case with pneumatic cutting tool included.
TPP TP 6000 50 Max cut Ø 1.0mm 18 awg 165x35mm Pneumatic cut and bend tool
TPP TP 6000/15 70 Max cut Ø 1.0mm 18 awg 165x35mm Pneumatic cut and bend tool
Contact us for more info
Order code TIP Cutting force (kg) Copper wire (Ø mm) Copper wire (awg)
P-TPPDatasheetP-TPP

Kit for TPP pedal activation (pedal included).

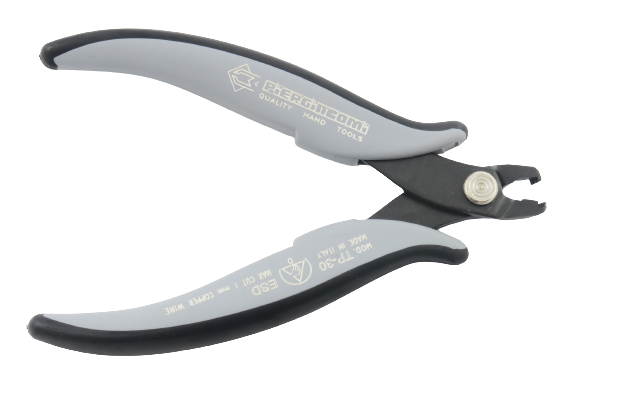

TP 30 DDatasheetTP 30 D 3 Max cut Ø 0.6mm 22 awg

ESD special tool that cuts and bends the component wire against the PCB in one step.
Steel thickness 3mm.

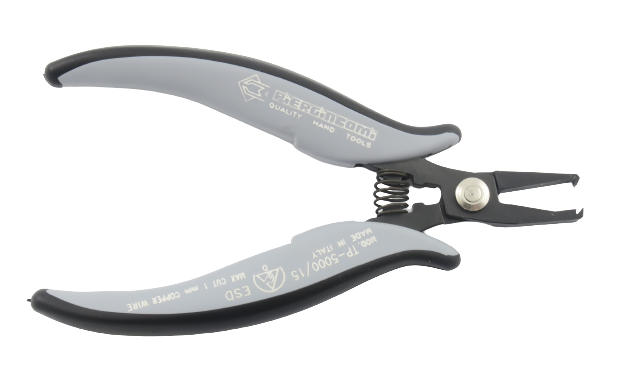

TP 5000/15 DDatasheetTP 5000/15 D 3 Max cut Ø 0.8mm 20 awg

ESD Special end cutting tool, ideal for tight spaces. It cuts and bends the component lead in one step, fixing it to the circuit board.
Steel thickness 5mm.

TPP SET with caseDatasheetTPP SET with case

Case with pneumatic cutting tool included.
It contains:
- TPP-TR-6000
- TP-6000 cutting head (cut & bend): cutting force 50Kg, copper wire Ø 1.02mm (18 awg)
- CL-6000-R spare blades (flush cut): cutting force 90Kg, copper wire Ø 1.60mm (14 awg)
- Hex key (2mm)

Case dimensions: 260(d)x320(w)x80(h)mm
Weight: 730g

Activated by lever.

TPP TP 6000DatasheetTPP TP 6000 50 Max cut Ø 1.0mm 18 awg

Pneumatic cutting and bending tool, which secures the component to the PCB.
Lever activation.
Several different spare blades available on request.
Weight: 300g
TPP TP 6000/15DatasheetTPP TP 6000/15 70 Max cut Ø 1.0mm 18 awg

Pneumatic cutting and bending tool, which secures the component to the PCB. Similar to TPP-TP-6000 but with a different head shape, ideal for working in hard-to-reach areas.
Lever activation.
Several different spare blades available on request.
Weight: 300g
