Order codeTIPESD Order Code(Ø mm)AwgWeight (g)Length (mm)Notes
PCC150g115mmCoaxial cable stripper
PRF 00.8÷2.620÷1050g115mmWire stripper
PS 4÷104÷10/0.8÷2.66÷000/20÷1050g115mmWire stripper
PST 0.50.52433g125mmPulling action wire stripper
PST 0.60.62233g125mmPulling action wire stripper
PST 0.80.82033g125mmPulling action wire stripper
PST 1.01.01833g125mmPulling action wire stripper
PST 1.61.61433g125mmPulling action wire stripper
SF 30SF 30 D0.20÷0.6432-2278g141mmAdjustable wire stripper
SF 40/10.25÷1.030-1822g50×55Flat wire stripper
SF 40/21.30÷1.816-1322g50×55Flat wire stripper
SFF 30SFF 30 D0.32÷0.5128-2476g141mmFixed wire stripper
Contact us for more info
Order codeTIP(Ø mm)AwgWeight (g)
PCC1DatasheetPCC150g

Coaxial cable stripper with double function, as shown in the figure:
1) insert the cable in the correct hole at the side, press and turn the tool 90° at the same time and pull.
2) insert the cable in the central hole, press and turn the tool 90° at the same time and pull.
AVAILABLE WHILE STOCKS LAST.

PRF 0DatasheetPRF 00.8÷2.620÷1050g

Wire stripper.
How to use it: Insert the wire between the 2 jaws up to the point where one wishes to strip and then pull back the tool. If needed, repeat this operation several times while turning the wire.
AVAILABLE WHILE STOCKS LAST.

PS 4÷10DatasheetPS 4÷104÷10/0.8÷2.66÷000/20÷1050g

Wire stripper with double function, as shown in the figure:
1) Wire stripper for the outer sheath (from Ø 4 to 10mm - 6-000 awg): insert the cable into one of the frontal holes, press and turn the tool 90° and then pull back.
2) Wire stripper for the internal wires (from Ø 0.8 to 2.6mm - 20-10 awg): insert one of the internal wires into one of the appropriate side holes, press and pull back.
AVAILABLE WHILE STOCKS LAST.

PST 0.5DatasheetPST 0.50.52433g

Pulling action stripper for cables Ø 0.5mm.
Lightweight, inexpensive and rapid to use.
PST is available in 5 versions: PST 0.5 - PST 0.6 - PST 0.8 - PST 1.0 - PST 1.6

PST 0.6DatasheetPST 0.60.62233g

Pulling action stripper for cables Ø 0.6mm.
Lightweight, inexpensive and rapid to use.
PST is available in 5 versions: PST 0.5 - PST 0.6 - PST 0.8 - PST 1.0 - PST 1.6

PST 0.8DatasheetPST 0.80.82033g

Pulling action stripper for cables Ø 0.8mm.
Lightweight, inexpensive and rapid to use.
PST is available in 5 versions: PST 0.5 - PST 0.6 - PST 0.8 - PST 1.0 - PST 1.6

PST 1.0DatasheetPST 1.01.01833g

Pulling action stripper for cables Ø 1.0mm.
Lightweight, inexpensive and rapid to use.
PST is available in 5 versions: PST 0.5 - PST 0.6 - PST 0.8 - PST 1.0 - PST 1.6

PST 1.6DatasheetPST 1.61.61433g

Pulling action stripper for cables Ø 1.6mm.
Lightweight, inexpensive and rapid to use.
PST is available in 5 versions: PST 0.5 - PST 0.6 - PST 0.8 - PST 1.0 - PST 1.6

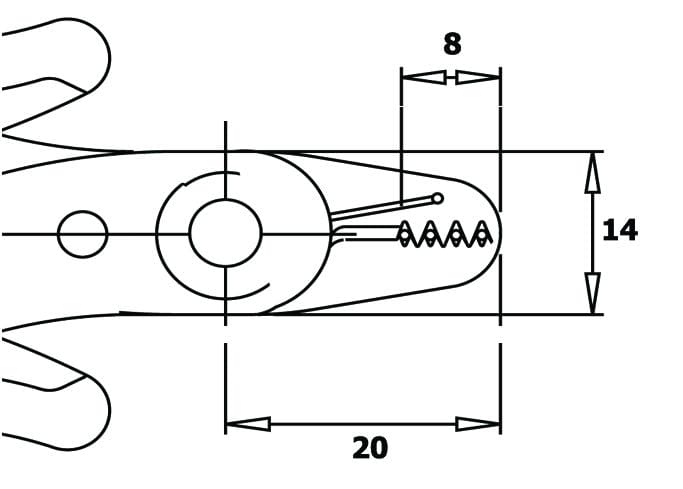

SF 30DatasheetSF 300.20÷0.6432-2278g

Wire stripper for diameters 0.20÷0.64mm (32-22 AWG) fitted with an elastic part that enables the stripping of the insulating cable sleeve without damaging the conductor wires. Steel thickness 2.5mm. Grip model St.

Also available in the following version:
- with ESD-safe handles in grey/black (code SF 30 D)

SF 40/1DatasheetSF 40/10.25÷1.030-1822g

SF-40-1 is a reliable tool, easy to handle and very fast to use. Flat and lightweight, it can be easily carried in one’s pocket.
Wire stripper for diameters from 0.25mm to 1mm (30-18 awg).
Recommended for electronics applications.

SF 40/2DatasheetSF 40/21.30÷1.816-1322g

SF-40-2 is a reliable tool, easy to handle and very fast to use. Flat and lightweight, it can be easily carried in one’s pocket.
Wire stripper for diameters from 1.3mm to 1.8mm (16-13 awg).
Recommended for electronics applications.

SFF 30DatasheetSFF 300.32÷0.5128-2476g

Fixed wire stripper for diameters 0.32÷0.51mm (28-24 AWG). Steel thickness 2.5mm. Grip model St.

Also available in the following version:
- with ESD-safe handles in grey/black (code SFF 30 D)
