Order code TIP Outer sheath (Ø mm) Buffer (µm) Acrylate (µm) Fiber Optic (mm - µm) Weight (g) Length (mm) Notes
CS-KC - - - 80g 145mm Kevlar cutter
CSF-1 - - - max 0.5mm 83g 145mm Adjustable single hole wire stripper (max 0.5mm)
CSF-1-125 - - 250µm 125µm 83g 145mm Pre-calibrated fiber optic wire stripper (125 micron)
CSF-3 Ø 1.6-3mm 600-900µm 250µm 125µm 83g 145mm Pre-calibrated 3 holes fiber optic wire stripper
K2-1 - - - 200g 200x100x30mm Optical fiber tools belt pouch
SC6/8 - - - 6.0-8.0mm 130g 170mm Cable stripper for Minibreakout
SC6/8-K - - - Spare kit for SC6/8
Contact us for more info
Order code TIP Weight (g) Length (mm)
CS-KCDatasheetCS-KC 80g 145mm

Kevlar cutter.
Ergonomic bi-material handles for a better grip. Anti-reflection and anti-oxidation surface treatment (phosphate coating). Closing stop lever. Steel thickness 3mm. Grip model S.

CSF-1DatasheetCSF-1 83g 145mm

Adjustable single-holes fiber optic wire stripper (max 0.5mm).
Ergonomic bi-material handles for a better grip. Anti-reflection and anti-oxidation surface treatment (phosphate coating). Closing stop lever. Steel thickness 3mm. Grip model S.

CSF-1-125DatasheetCSF-1-125 83g 145mm

Pre-calibrated single-holes fiber optic wire stripper (125µm).
Ergonomic bi-material handles for a better grip. Anti-reflection and anti-oxidation surface treatment (phosphate coating). Closing stop lever. Steel thickness 3mm. Grip model S.

CSF-3DatasheetCSF-3 83g 145mm

Pre-calibrated 3-holes wire stripper to remove fiber optic coating in one tool.
1st hole: from 1.6 to 3mm (outer sheath)
2nd hole: from 600 to 900 micron (buffer)
3rd hole: from 250 micron (acrylate)
Ergonomic bi-material handles for a better grip. Anti-reflection and anti-oxidation surface treatment (phosphate coating). Closing stop lever. Steel thickness 3mm. Grip model S.

K2-1DatasheetK2-1 200g 200x100x30mm

Pouch containing 2 fiber optic wire strippers:
- CS-KC: Kevlar cutter
- CSF-3: pre-calibrated 3-holes wire stripper to remove fiber optic coating with a single tool (1st hole: 1.6-3mm (outer sheath); 2nd hole: 600-900µm (buffer); 3rd hole: 250µm (acrylate).

Belt pouch also available EMPTY.

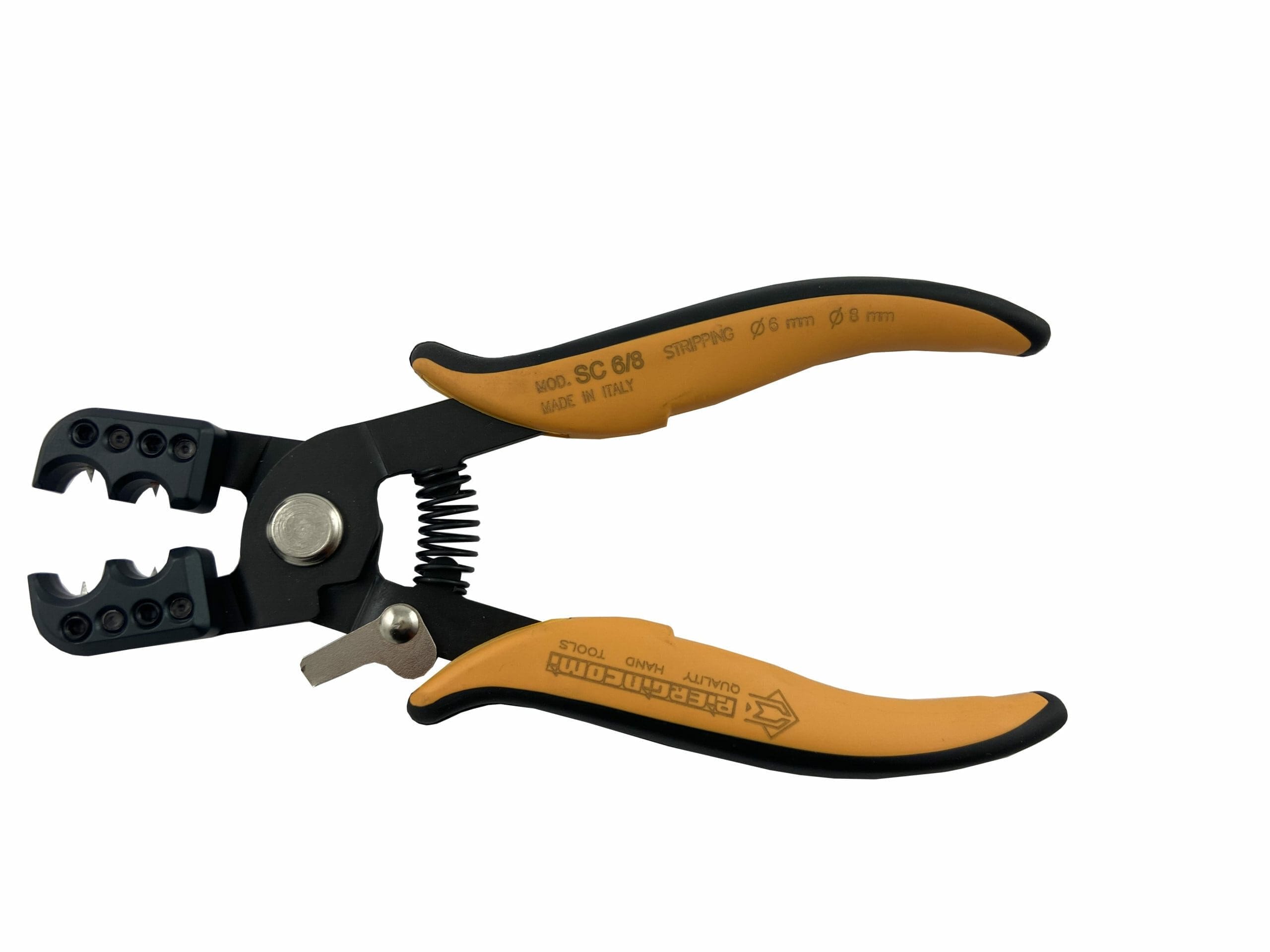

SC6/8DatasheetSC6/8 130g 170mm

Cable stripper for Minibreakout. This cable stripper is used to create a longitudinal window cut on vertical FTTH cables. In this way the operator can access the fiber modules inside the cable.
- suitable for cables 6-8mm diameters
- interchangeable steel blades

Hardened steel. Ergonomic bi-material handles for a better grip. Closing stop lever.
Anti-reflection and anti-oxidation surface treatment (phosphate coating).

Available the spare kit for SC6/8 (order code SC6/8-K).

SC6/8-KDatasheetSC6/8-K

Spare kit for SC-6/8 cable stripper.
It composed of:
- no. 4 blades
- no. 1 pin Ø 1x25mm
- no. 1 hexagonal wrench.

CONTACT US FOR MORE INFO
