Order codeTIPHrcNotes
1-SA - ORAFI / JEWELLERYTweezers with very strong tips and thin blades
19P-SA - ORAFI / JEWELLERYTweezers with curved and serrated tips
2-SA - ORAFI / JEWELLERYTweezers with very strong tips and sharp blades
2A-SA - ORAFI / JEWELLERYTweeezers with flat rounded tips
3-SA - ORAFI / JEWELLERYTweezers with strong tips and thin blades
33-SA - ORAFI / JEWELLERYReverse-action tweezers
33A-SA - ORAFI / JEWELLERYReverse-action tweezers with curved tips
3C-SA - ORAFI / JEWELLERYTweezers with strong tips and thin blades
4-SA - ORAFI / JEWELLERYTweezers with very fine and sharp tips
5-SA - ORAFI / JEWELLERYTweezers with very fine and sharp tips
7-SA - ORAFI / JEWELLERYTweezers with very fine curved tips
AA-SA - ORAFI / JEWELLERYTweezers with strong fine tips
CCS 30 - ORAFI / JEWELLERYShears for memory wire
CS KC - ORAFI / JEWELLERYShears
CSO 30 - ORAFI / JEWELLERYShears
ITR 5000 R - ORAFI / JEWELLERYFlush cutter
PN 2018 - ORAFI / JEWELLERY48-50Long smooth chain-nose pliers.
PN 20 M - ORAFI / JEWELLERY48-50Short smooth needle-nose pliers
PN 5002 - ORAFI / JEWELLERY48-50Short smooth needle-nose pliers
PN 5004 - ORAFI / JEWELLERY48-50Short smooth flat-nose pliers
PN 5006 - ORAFI / JEWELLERY48-50Long smooth needle-nose pliers.
PN 5025 - ORAFI / JEWELLERY48-50Smooth rounded long nose pliers.
PN 5025/1 - ORAFI / JEWELLERY48-50Smooth rounded short nose pliers
PN 5025/2 - ORAFI / JEWELLERY48-50Long smooth round-nose pliers. Tip Ø 1mm.
PN 5025/3 - ORAFI / JEWELLERY48-50Smooth rounded short nose pliers
PN 5025 C - ORAFI / JEWELLERY48-50Pliers with rounded nose and cutting tip
PN 5028 - ORAFI / JEWELLERY48-50Long round/flat nose pliers.
PNB 2017 - ORAFI / JEWELLERY48-50Long serrated 45° bent chain-nose pliers.
PNB 2018 - ORAFI / JEWELLERY48-50Long smooth 45° bent round-nose pliers
PNO-01 - ORAFI / JEWELLERY48-50Standard crimper 2mm size
PNO-02 - ORAFI / JEWELLERY48-50Micro crimper 1-1.5mm size
PNO-03 - ORAFI / JEWELLERY48-50Mighty crimper 3mm size
PNO-05 - ORAFI / JEWELLERY48-50Split ring pliers
PNO-06 - ORAFI / JEWELLERY48-50Hole punch pliers
SS-SA - ORAFI / JEWELLERYTweezers with very fine long tips
TR 25 P - ORAFI / JEWELLERYMicro cutter - flush cut
TR 30 - ORAFI / JEWELLERYFlush cutter
TR 5000 PR - ORAFI / JEWELLERYFlush cutter
TRR 58 G - ORAFI / JEWELLERYFlush cutter
W Inox - ORAFI / JEWELLERYTweezers with strong flat tips
Contact us for more info
Order codeTIPWeight (g)Length (mm)
1-SA - ORAFI / JEWELLERYDatasheet1-SA - ORAFI / JEWELLERY16g120mm

General-purpose tweezers with very strong tips and thin blades.
Anti-Magnetic & Anti-Acid version.

19P-SA - ORAFI / JEWELLERYDatasheet19P-SA - ORAFI / JEWELLERY160mm

Tweezers with serrated curved tips and finger grooves, ideal for assembly applications.
Anti-Magnetic & Anti-Acid version.

2-SA - ORAFI / JEWELLERYDatasheet2-SA - ORAFI / JEWELLERY16g120mm

General-purpose tweezers with very strong tips and sharp blades.
Anti-Magnetic & Anti-Acid version.

2A-SA - ORAFI / JEWELLERYDatasheet2A-SA - ORAFI / JEWELLERY17g120mm

General-purpose tweezers with flat rounded tips.
Anti-Magnetic & Anti-Acid version.

3-SA - ORAFI / JEWELLERYDatasheet3-SA - ORAFI / JEWELLERY14g120mm

Tweezers with strong tips and thin blades.
Anti-Magnetic & Anti-Acid version.

33-SA - ORAFI / JEWELLERYDatasheet33-SA - ORAFI / JEWELLERY150mm

Reverse-action tweezers, ideal to be used during soldering.
Anti-Magnetic & Anti-Acid version.

33A-SA - ORAFI / JEWELLERYDatasheet33A-SA - ORAFI / JEWELLERY30g150mm

Reverse-action tweezers with curved tips, ideal to be used during soldering.
Anti-Magnetic & Anti-Acid version.

3C-SA - ORAFI / JEWELLERYDatasheet3C-SA - ORAFI / JEWELLERY13g110mm

Tweezers with strong tips and thin blades.
Anti-Magnetic & Anti-Acid version.

4-SA - ORAFI / JEWELLERYDatasheet4-SA - ORAFI / JEWELLERY14g110mm

Tweezers with very fine and sharp tips.
Anti-Magnetic & Anti-Acid version.

5-SA - ORAFI / JEWELLERYDatasheet5-SA - ORAFI / JEWELLERY14g110mm

Tweezers with very fine and sharp tips.
Anti-Magnetic & Anti-Acid version.

7-SA - ORAFI / JEWELLERYDatasheet7-SA - ORAFI / JEWELLERY17g120mm

Tweezers with very fine curved tips for easy gripping in tight spaces.
Anti-Magnetic & Anti-Acid version.

AA-SA - ORAFI / JEWELLERYDatasheetAA-SA - ORAFI / JEWELLERY18g130mm

Tweezers with strong fine tips and a strong grip.
Anti-Magnetic & Anti-Acid version.

CCS 30 - ORAFI / JEWELLERYDatasheetCCS 30 - ORAFI / JEWELLERY78g136mm

Shears ideal for the cutting of copper wire, other soft materials, ferrous wire and memory wire. Locking lever. Ergonomic anti slip handles for a better grip. Anti-reflection and anti-oxidation surface treatment (phosphate coating). Induction treatment of blades. Steel thickness 3mm.


- Max cut Fe Ø 2.05mm (12 awg)
- Max cut Steel Ø 0.5mm (24 awg)

CS KC - ORAFI / JEWELLERYDatasheetCS KC - ORAFI / JEWELLERY80g145mm

Shears with one serrated blade. Useful to capture and cut slippery threads and cords. Not suitable for wires. Ergonomic bi-material handles for a better grip. Locking lever. Anti-reflection and anti-oxidation surface treatment (phosphate coating). Steel thickness 3mm.

CSO 30 - ORAFI / JEWELLERYDatasheetCSO 30 - ORAFI / JEWELLERY80g142mm

Lightweight and easy to handle shears for a clean cut of soft wires. Ergonomic bi-material anti-slip handles for a better grip. Anti-reflection and anti-oxidation surface treatment (phosphate coating). Steel thickness 3mm.

- Max cut Cu Ø 1.63mm (14 awg)

ITR 5000 R - ORAFI / JEWELLERYDatasheetITR 5000 R - ORAFI / JEWELLERY100g133mm

Strong flush cutter with induction treatment of blades for the cutting of copper wire, other soft materials and ferrous wire. Also available with safety clip (order code ITR 5000 RA). Anti-reflection and anti-oxidation surface treatment (phosphate coating). Steel thickness 5mm.

- Max cut Cu Ø 2.05mm (12 awg)
- Max cut Fe Ø 1.63mm (14 awg)

PN 2018 - ORAFI / JEWELLERYDatasheetPN 2018 - ORAFI / JEWELLERY155mm

Flat-nose pliers with long smooth jaws, rounded on the outside. Steel thickness 3mm.

PN 20 M - ORAFI / JEWELLERYDatasheetPN 20 M - ORAFI / JEWELLERY49g136mm

Needle-nose pliers with short smooth jaws. Steel thickness 2mm.

PN 5002 - ORAFI / JEWELLERYDatasheetPN 5002 - ORAFI / JEWELLERY98g146mm

Flat nose pliers with short smooth jaws, suitable for gripping any type of components. Ergonomic be-material anti slip handles for a better grip. Anti-reflection and anti-oxidation surface treatment (phosphate coating). Steel thickness 5mm.

PN 5004 - ORAFI / JEWELLERYDatasheetPN 5004 - ORAFI / JEWELLERY141mm

Flat-nose pliers with short smooth jaws. Steel thickness 5mm.

PN 5006 - ORAFI / JEWELLERYDatasheetPN 5006 - ORAFI / JEWELLERY100g149mm

Needle-nose pliers with long smooth jaws, specially designed for hard-to-reach areas. Steel thickness 5mm.

PN 5025 - ORAFI / JEWELLERYDatasheetPN 5025 - ORAFI / JEWELLERY98g149mm

Smooth rounded long-nose pliers. Tip diameter 1.8mm. Nose length 26mm. Steel thickness 5mm.

PN 5025/1 - ORAFI / JEWELLERYDatasheetPN 5025/1 - ORAFI / JEWELLERY98g146mm

Smooth rounded short-nose pliers. Tip diameter 1.6mm. Nose length 20mm. Steel thickness 5mm.

PN 5025/2 - ORAFI / JEWELLERYDatasheetPN 5025/2 - ORAFI / JEWELLERY100g149mm

Smooth rounded long-nose pliers. Tip diameter 1mm. Nose length 26 mm. Steel thickness 5mm.

PN 5025/3 - ORAFI / JEWELLERYDatasheetPN 5025/3 - ORAFI / JEWELLERY98g146mm

Smooth rounded short-nose pliers. Tip diameter 1mm. Nose length 20mm. Steel thickness 5mm.

PN 5025 C - ORAFI / JEWELLERYDatasheetPN 5025 C - ORAFI / JEWELLERY100g147mm

Pliers with rounded nose and cutting tip. Ideal for electronics applications, but also perfect for making rosaries, as the same tool can be used to make loops and bends as well as cut wire. Excellent for chain assembly. Induction-hardened tips. Steel thickness 5mm.

PN 5028 - ORAFI / JEWELLERYDatasheetPN 5028 - ORAFI / JEWELLERY100g149mm

Special long nose pliers, with one flat and one round jaw. Steel thickness 5mm.

PNB 2017 - ORAFI / JEWELLERYDatasheetPNB 2017 - ORAFI / JEWELLERY78g152mm

45° angled pointed-nose pliers with long serrated jaws, rounded on the outside. Ideal for delicate applications. Ergonomic be-material anti slip handles for a better grip. Anti-reflection and anti-oxidation surface treatment (phosphate coating). Steel thickness 3mm.

PNB 2018 - ORAFI / JEWELLERYDatasheetPNB 2018 - ORAFI / JEWELLERY78g152mm

Long flat smooth-nose pliers with externally rounded jaws bent at 45°. Steel thickness 3mm.

PNO-01 - ORAFI / JEWELLERYDatasheetPNO-01 - ORAFI / JEWELLERY70g140mm

Crimping pliers ideal to close and secure beads and tubes of your jewelry. Ideal for 2mm components. Ergonomic be-material anti slip handles for a better grip. Anti-reflection and anti-oxidation surface treatment (phosphate coating). Steel thickness 3.0mm.

PNO-02 - ORAFI / JEWELLERYDatasheetPNO-02 - ORAFI / JEWELLERY70g140mm

MICRO crimping pliers ideal to close and secure beads and tubes of your jewelry. Ideal for 1-1.5mm components. Ergonomic be-material anti slip handles for a better grip. Anti-reflection and anti-oxidation surface treatment (phosphate coating). Steel thickness 3mm.

PNO-03 - ORAFI / JEWELLERYDatasheetPNO-03 - ORAFI / JEWELLERY70g140mm

MIGHTY crimping pliers ideal to close and secure beads and tubes of your jewelry. Ideal for 3mm components. Ergonomic be-material anti slip handles for a better grip. Anti-reflection and anti-oxidation surface treatment (phosphate coating). Steel thickness 3mm.

PNO-05 - ORAFI / JEWELLERYDatasheetPNO-05 - ORAFI / JEWELLERY70g140mm

Pliers specially designed to separate the rings keeping them open for further additions thanks to the special socket. Ergonomic be-material anti slip handles for a better grip. Anti-reflection and anti-oxidation surface treatment (phosphate coating). Steel thickness 3mm.

PNO-06 - ORAFI / JEWELLERYDatasheetPNO-06 - ORAFI / JEWELLERY70g140mm

Punching pliers for ductile metal sheets (gold, copper, etc.) with a maximum thickness of 0.8mm. Not for hard metal sheets such as inox. It creates a clean hole leaving the surface smooth and without dents. Ergonomic be-material anti slip handles for a better grip. One spare pin included. Anti-reflection and anti-oxidation surface treatment (phosphate coating). Steel thickness 3mm.

SS-SA - ORAFI / JEWELLERYDatasheetSS-SA - ORAFI / JEWELLERY13g140mm

Tweezers with very fine long and thin tips. Ideal to be used when working close to heat sources.
Anti-Magnetic & Anti-Acid version.

TR 25 P - ORAFI / JEWELLERYDatasheetTR 25 P - ORAFI / JEWELLERY60g132mm

Flush cutter. Micro head with pointed blades for the cutting of copper wire and other soft materials. Induction blades treatment version also available for the cutting of ferrous material (order code ITR 25 P). Ergonomic bi-material anti-slip handles for a better grip. Anti-reflection and anti-oxidation surface treatment (phosphate coating). Steel thickness 2.5mm.

- Code TR 25 P: max cut Cu Ø 1.02mm (18 awg)
- Code ITR 25 P: max cut Cu Ø 1.02mm (18 awg) | max cut Fe Ø 0.6mm (22 awg)

TR 30 - ORAFI / JEWELLERYDatasheetTR 30 - ORAFI / JEWELLERY80g133mm

Flush cutter for the cutting of copper wire and other soft materials. Also available with safety clip (order code TR 30 A). Induction blades treatment version also available for the cutting of ferrous material (order code ITR 30). Ergonomic bi-material anti-slip handles for a better grip. Anti-reflection and anti-oxidation surface treatment (phosphate coating). Steel thickness 3mm.

- Code TR 30: max cut Cu Ø 1.30mm (16 awg)
- Code ITR 30: max cut Cu Ø 1.30mm (16 awg) | max cut Fe Ø 1.02mm (18 awg)

TR 5000 PR - ORAFI / JEWELLERYDatasheetTR 5000 PR - ORAFI / JEWELLERY100g133mm

Flush cutter with very pointed blades for the cutting of copper wire and other soft materials. Induction blades treatment version also available for the cutting of ferrous material (order code ITR 5000 PR). Ergonomic bi-material anti-slip handles for a better grip. Anti-reflection and anti-oxidation surface treatment (phosphate coating). Steel thickness 5mm.

- Code TR 5000 PR: max cut Cu Ø 1.30mm (16 awg)
- Code ITR 5000 PR: max cut Cu Ø 1.30mm (16 awg) | max cut Fe Ø 1.02mm (18 awg)

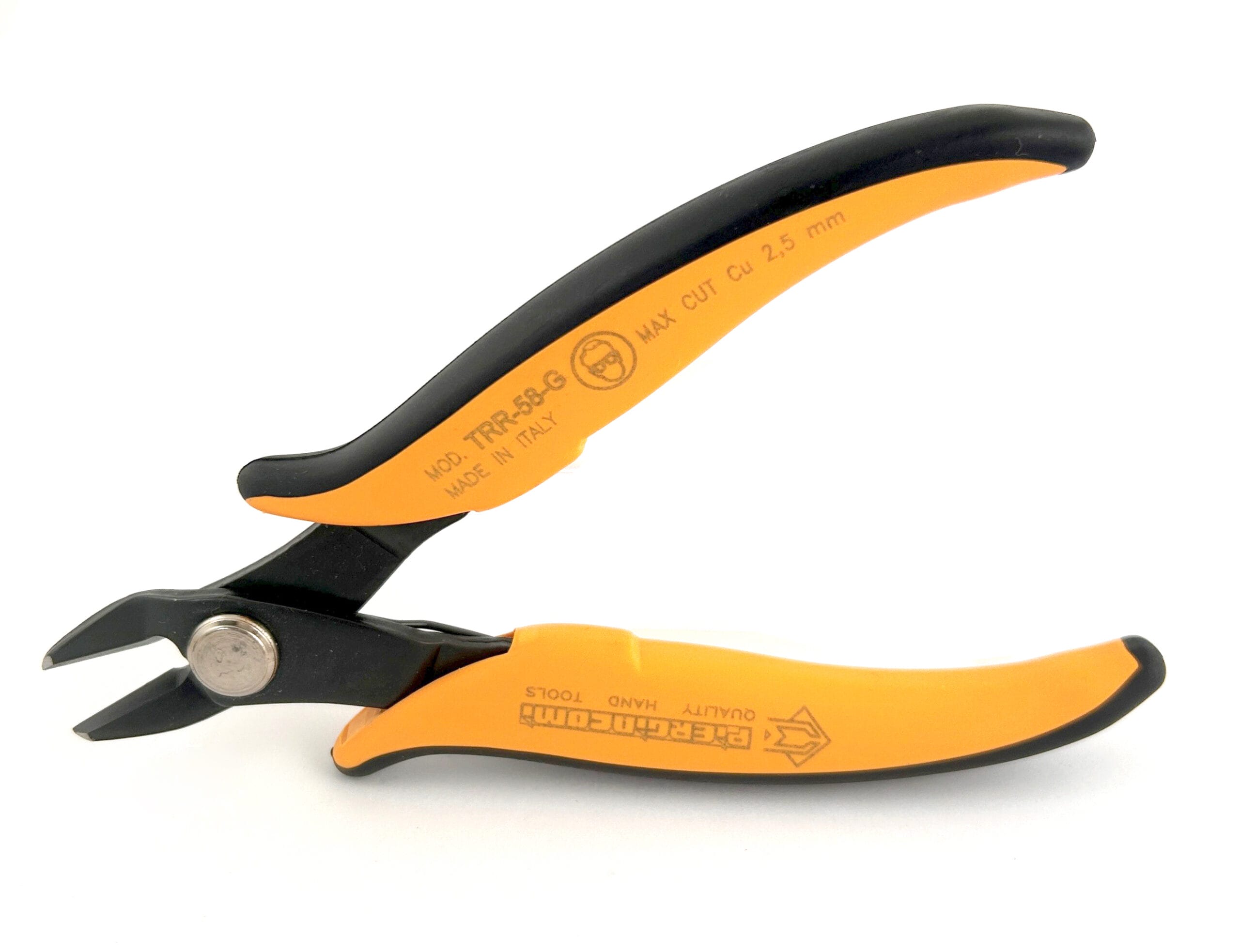

TRR 58 G - ORAFI / JEWELLERYDatasheetTRR 58 G - ORAFI / JEWELLERY90g142mm

Strong flush cutter. Macro head for the cutting of copper wire, other soft and plastic materials. Induction blades treatment version also available for the cutting of ferrous material (order code ITRR 58 G). Steel thickness 3mm.

- Code TRR 58 G: max cut Cu Ø 2.59mm (10 awg)
- Code ITRR 58 G: max cut Cu Ø 2.59mm (10 awg) | max cut Fe Ø 1.63mm (14 awg)

W Inox - ORAFI / JEWELLERYDatasheetW Inox - ORAFI / JEWELLERY29g150mm

Stainless steel tweezers with strong flat tips, suitable for jewellery making.
