Order code TIP Weight (g) Length (mm) Notes
CSP 30.4 102g 160mm Shears for removal of plastic ties
CSP 30 G 110g 155mm Shears for cutting rubber seals
CSP 30 GL 110g 165mm Shears for cutting rubber seals
TR 25 B 78g 133mm Convex flush cutting edge
TR 25 B D 78g 133mm Convex flush cutting edge
TR 30 B 80g 133mm Convex flush cutting edge
TR 30 B D 80g 133mm Convex flush cutting edge
TR 5000 B 100g 133mm Convex flush cutting edge
TR 5000 B D 100g 133mm Convex flush cutting edge
TR 5000 PG 100g 133mm Convex flush cutting edge
TR 5000 PG D 100g 133mm Convex flush cutting edge
TRR 58 B 90g 142mm Convex flush cutting edge
TRR 58 B D 90g 142mm Convex flush cutting edge
Contact us for more info
Order code ESD Order Code TIP Weight (g) Length (mm)

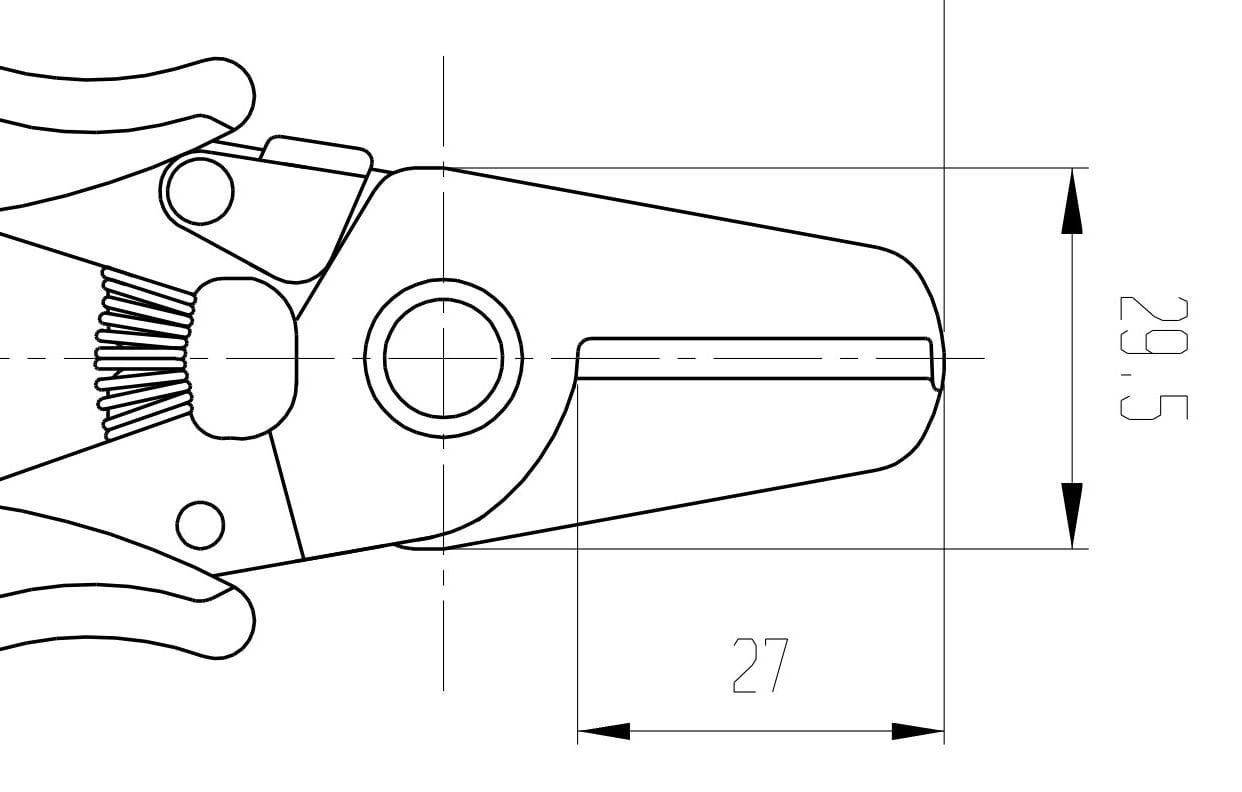

CSP 30.4DatasheetCSP 30.4 102g 160mm

Shears for removing plastic cable ties.
Clean cuts without the risk of damaging the cable underneath.
Also suitable for cutting cables up to Ø 10 mm.
Handle locking lever.

CSP 30 GDatasheetCSP 30 G CSP 30 G D 110g 155mm

Tool designed for cutting rubber seals, with the tip angled at 45°. Particularly used in the field of doors and windows.
a=25
Available while stocks last.

CSP 30 GLDatasheetCSP 30 GL CSP 30 GL D 110g 165mm

Tool designed for cutting rubber seals, insulators and similar materials, with the tip angled at 45°. Particularly used in the field of doors and windows.
a=35
Available while stocks last.

TR 25 BDatasheetTR 25 B TR 25 B D 78g 133mm

Flush cutter with convex cutting edge, for well-finished cuts. Lightweight and easy to handle, with convex cutting edges for well-finished cuts.
Suitable for plastics. Steel thickness 2.5mm.
TR 25 B DDatasheetTR 25 B D TR 25 B D 78g 133mm

ESD Flush cutter with convex cutting edge, for well-finished cuts. Lightweight and easy to handle, with convex cutting edges for well-finished cuts.
Suitable for plastics. Steel thickness 2.5mm.
TR 30 BDatasheetTR 30 B TR 30 B D 80g 133mm

Flush cutter with convex cutting edge, for well-finished cuts. Lightweight and easy to handle, with convex cutting edges for well-finished cuts.
Suitable for plastics. Steel thickness 3mm.

TR 30 B DDatasheetTR 30 B D 80g 133mm

ESD Flush cutter with convex cutting edge, for well-finished cuts. Lightweight and easy to handle, with convex cutting edges for well-finished cuts.
Suitable for plastics. Steel thickness 3mm.

TR 5000 BDatasheetTR 5000 B TR 5000 B D 100g 133mm

Strong tool with convex cutting edges for a flush finished cut.
Suitable for finishes in the plastic field. Steel thickness 5mm.

TR 5000 B DDatasheetTR 5000 B D 100g 133mm

ESD Strong tool with convex cutting edges for a flush finished cut.
Suitable for finishes in the plastic field. Steel thickness 5mm.

TR 5000 PGDatasheetTR 5000 PG TR 5000 PG D 100g 133mm

Strong tapered head flush cutter, with well-finished cutting edges.
Suitable for plastics. Steel thickness 5mm.

TR 5000 PG DDatasheetTR 5000 PG D TR 5000 PG D 100g 133mm

ESD Strong tapered head flush cutter, with well-finished cutting edges.
Suitable for plastics. Steel thickness 5mm.

TRR 58 BDatasheetTRR 58 B TRR 58 B D 90g 142mm

Strong flush cutter. The rounded surface of the cutting edges allows for a finished cut. Steel thickness 3mm.

TRR 58 B DDatasheetTRR 58 B D 90g 142mm

ESD Strong flush cutter. The rounded surface of the cutting edges allows for a finished cut. Steel thickness 3mm.

CONTACT US FOR MORE INFO
