Special pliers designed to bend the TO220 component leads (5 leads) to 90° in one step, in such a way that leads 2-4 are 3.81 mm shorter than leads 1-3-5. The forming length can be adjusted using the adjustable stop (min. 3 mm).
Steel thickness 5.5 mm. Tool length 155 mm.
ESD-safe handles. Grip model St.
PN 5050/46D
| Order code | PN 5050/46D |
|---|---|
| Length (mm) | 155mm |
| Forming force kg | 3 |
| Copper wire (Ø mm) | Max Ø 0.6mm |
| Copper wire (awg) | 22 awg |

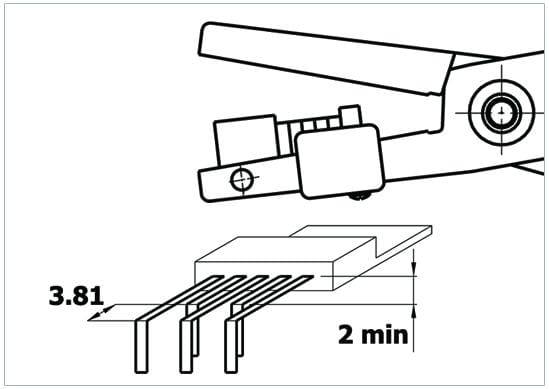

| Immagine Tecnica |  |
| Tip |  |
| Notes | TO220 (5 leads) 90° forming, leads 1-3-5 3.81 mm shorter than leads 2-4. ESD-safe handles. |
