“U”-shape forming pliers

Order code	Copper wire (Ø mm)	Copper wire (awg)	Forming force kg	Length (mm)	Notes
PPR 5000D	Max Ø 0.6÷0.8mm	22-20 awg	3	150mm	U-shape forming pliers. ESD-safe handles.
PPR 5001D	Max Ø 0.6÷0.8mm	22-20 awg	3	150mm	U-shape forming pliers. ESD-safe handles.
PPR 5002D	Max Ø 0.6÷0.8mm	22-20 awg	3	150mm	U-shape forming pliers. ESD-safe handles.
PPR 5003D	Max Ø 0.6÷0.8mm	22-20 awg	3	150mm	U-shape forming pliers. ESD-safe handles.

Order code

TIP

Copper wire (Ø mm)

Copper wire (awg)

Forming force kg

Max Ø 0.6÷0.8mm

22-20 awg

It forms the component lead in a "U" shape.
Dimensions: A = 7.62 mm ; B = 12 mm
Steel thickness 5mm. ESD-safe handles. Grip model St.

Max Ø 0.6÷0.8mm

22-20 awg

It forms the component lead in a "U" shape.

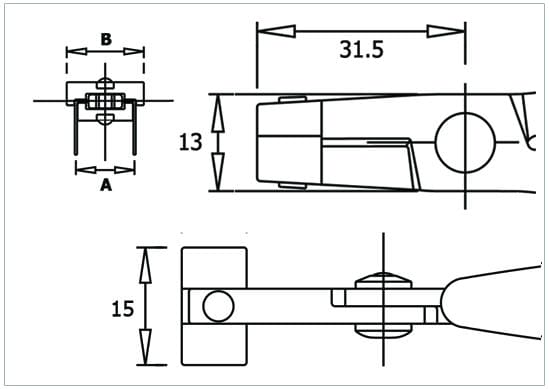

Dimensions: A = 10.16 mm ; B = 15 mm
Steel thickness 5mm. ESD-safe handles. Grip model St.

Max Ø 0.6÷0.8mm

22-20 awg

It forms the component lead in a "U" shape.
Dimensions: A = 12.70 mm ; B = 18 mm
Steel thickness 5mm. ESD-safe handles. Grip model St.

Max Ø 0.6÷0.8mm

22-20 awg

It forms the component lead in a "U" shape.
Dimensions: A = 15.24 mm ; B = 20 mm
Steel thickness 5mm. ESD-safe handles. Grip model St.
