It forms the component lead in a “U” shape.

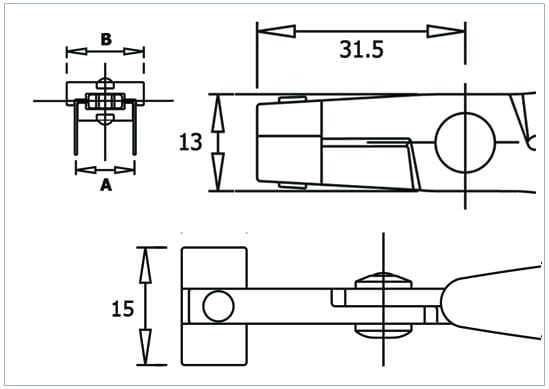

Dimensions: A = 10.16 mm ; B = 15 mm
Steel thickness 5mm. ESD-safe handles. Grip model St.
PPR 5001D
| Order code | PPR 5001D |
|---|---|
| Length (mm) | 150mm |
| Forming force kg | 3 |
| Copper wire (Ø mm) | Max Ø 0.6÷0.8mm |
| Copper wire (awg) | 22-20 awg |
| Immagine Tecnica |  |
| Tip |  |
| Notes | U-shape forming pliers. ESD-safe handles. |
