Order code TIP Ø mm Awg Length (mm) Notes
CCS 30 Ø 0.5 - 2.0mm 24-12 136mm Shears for memory wire
CCS 30 D Ø 0.5 - 2.0mm 24-12 136mm Shears for memory wire
CS 30 Ø 1.30mm 16 139mm Shears
CS 30 D Ø 1.30mm 16 139mm Shears
CS 30 L Ø 1.30mm 16 152mm Shears
CS 30 L D Ø 1.30mm 16 152mm Shears
CSO 30 Ø 1.63mm 14 142mm Shears
CSO 30 D Ø 1.63mm 14 142mm Shears
CSP 30.4 Ø 10mm 000 160mm Shears for removal of plastic ties
CSP 30.4 D Ø 10mm 000 160mm Shears for removal of plastic ties
CSP 30.5 Ø 1.63mm 14 165mm Shears
CSP 30.5 D Ø 1.63mm 14 165mm Shears
Contact us for more info
Order code TIP Ø mm Awg
CCS 30DatasheetCCS 30 Ø 0.5 - 2.0mm 24-12

Shears ideal for the cutting of copper wire, other soft materials, ferrous wire and memory wire. Locking lever. Induction treatment of blades. Steel thickness 3mm.

- Max cut Fe Ø 2.05mm (12 awg)
- Max cut Steel Ø 0.5mm (24 awg)
CCS 30 DDatasheetCCS 30 D Ø 0.5 - 2.0mm 24-12

ESD Shears ideal for the cutting of copper wire, other soft materials, ferrous wire and memory wire. Locking lever. Induction treatment of blades. Steel thickness 3mm.

- Max cut Fe Ø 2.05mm (12 awg)
- Max cut Steel Ø 0.5mm (24 awg)
CS 30DatasheetCS 30 Ø 1.30mm 16

Easy-to-handle shears, designed for use in electronics but also suitable for other applications.

CS 30 DDatasheetCS 30 D Ø 1.30mm 16

Easy-to-handle ESD shears, designed for use in electronics but also suitable for other applications.

CS 30 LDatasheetCS 30 L Ø 1.30mm 16

Easy-to-handle shears, designed for use in electronics but also suitable for other applications. Similar to CS 30 but longer.

CS 30 L DDatasheetCS 30 L D Ø 1.30mm 16

Easy-to-handle ESD shears, designed for use in electronics but also suitable for other applications. Similar to CS 30 D but longer.

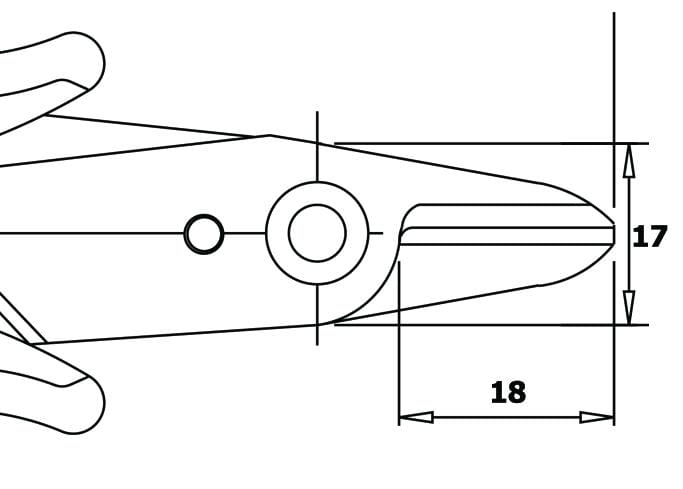

CSO 30DatasheetCSO 30 Ø 1.63mm 14

Lightweight and easy to handle shears for a clean cut of soft wires.

CSO 30 DDatasheetCSO 30 D Ø 1.63mm 14

Lightweight and easy to handle ESD shears for a clean cut of soft wires.

CSP 30.4DatasheetCSP 30.4 Ø 10mm 000

Shears for removing plastic cable ties.
Clean cuts without the risk of damaging the cable underneath.
Also suitable for cutting cables up to Ø 10 mm.
Handle locking lever.

CSP 30.4 DDatasheetCSP 30.4 D Ø 10mm 000

ESD shears for removing plastic cable ties.
Clean cuts without the risk of damaging the cable underneath.
Also suitable for cutting cables up to Ø 10 mm.
Handle locking lever.

CSP 30.5DatasheetCSP 30.5 Ø 1.63mm 14

Strong shears, can be used for different tasks in electronics and/or hobby fields.

CSP 30.5 DDatasheetCSP 30.5 D Ø 1.63mm 14

Strong ESD shears, can be used for different tasks in electronics and/or hobby fields.
